| SPECIFICATIONS | ||
|---|---|---|
| PERFORMANCE | ||
| GVW | 5,000 | |
| Minimum Turning Radius(m) | 5 | |
| Maximum Speed(km/hr) | 110 | |
| Maximum Gradeability(%) | 35 | |
| ENGINE | ||

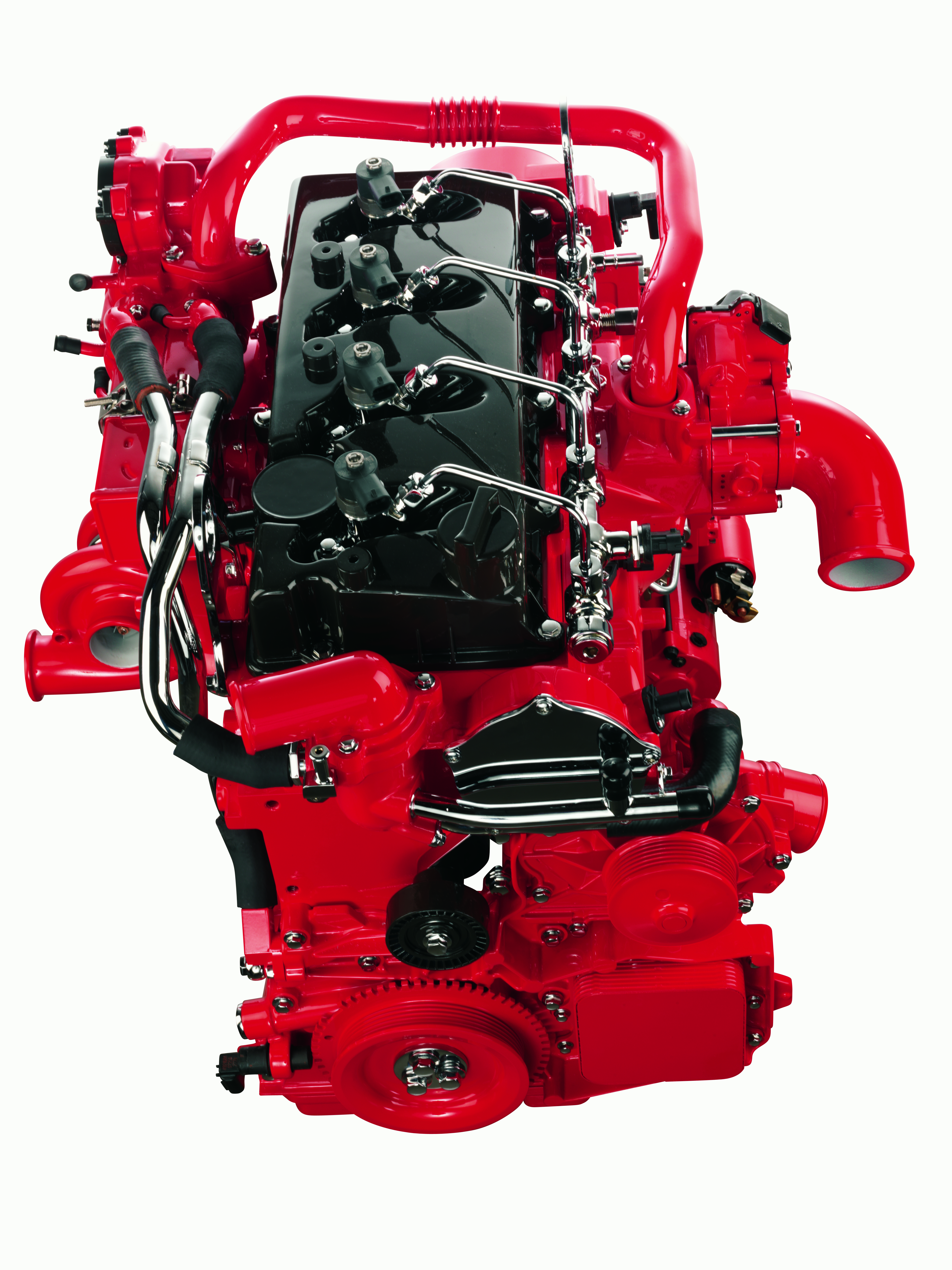

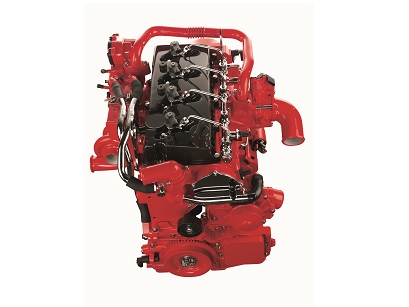

| Make and Model | CUMMINS ISF2.8s3129T | |
| Type | Diesel, Turbocharged Intercooled, Four-Stroke | |
| Number of Cylinders | 4 Cylinder Inline / Euro-3 | |
| Bore x Stroke(mm) | 94 x 100 | |
| Total Piston Displacement(cc) | 2,776 | |
| Max. Output(ps) | 130 @ 3,200 rpm | |
| Max. Torque(kg.m) | 31.6 @ 1,600 - 2,700 rpm | |
| Compression Ratio | 16.5 : 1 | |
| Lubrication System | Forced Feed by Gear Pump | |
| Cooling System | Water Cooled | |
| Fuel System | Common Rail System | |
| - Fuel Injection Pump | Direct Injection | |
| Air Cleaner | Dry Paper Element Type | |
| TRANSMISSION | ||

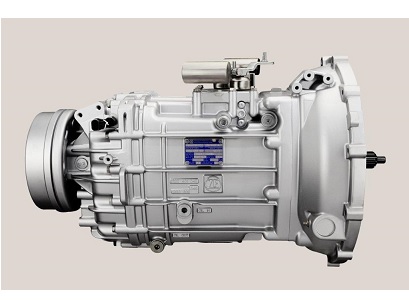

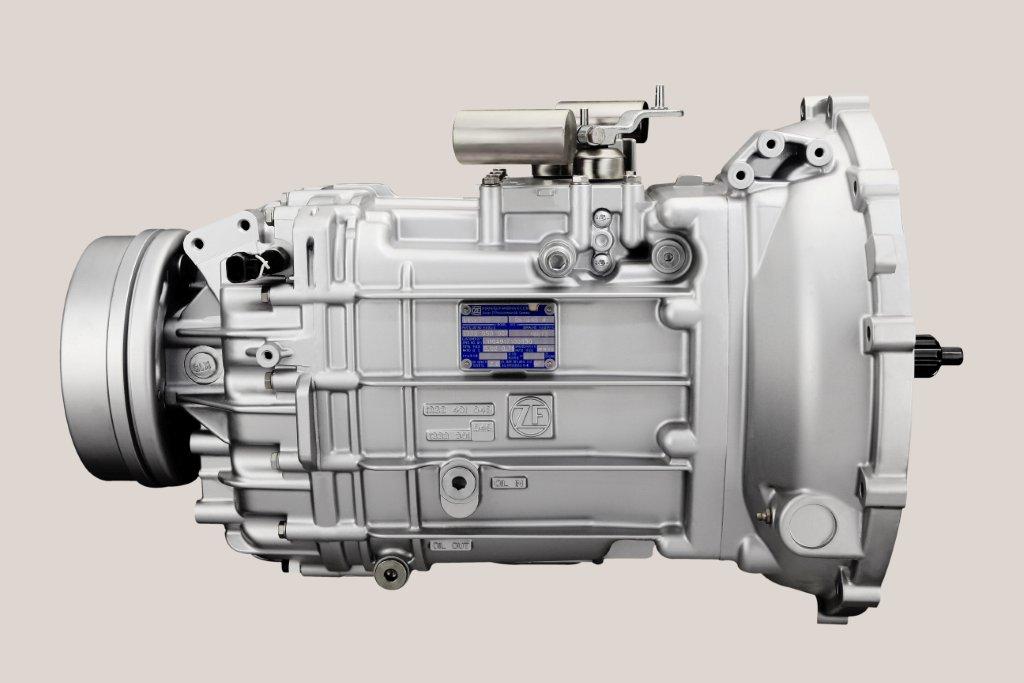

| Make & Model | ZF Transmission, ZF5S400 | |
| Type | 5 Forward Speed & 1 Reverse Speed, Fully Sychromesh Aluminium Casing | |
| Gear Ratios | 1st : 5.015 , 2nd : 2.543 , 3rd : 1.536 , | |
| 4th : 1.00 , 5th : 0.789 | ||
| Rev :4.481 | ||
| Gear Shift | Mechanical Cable Remote Control | |
| Final Reduction Ratio | 5.125 | |
| CHASSIS | ||
| Clutch | Hydraulic with Vacuum Assistance, Diaphragm Spring Clutch | |
| Front Axle | Forged Reverse Elliot "I" Beam | |
| - Front Spring | Leaf Spring | |
| - Width x Span x Leaves | 70 x 1,230 x 3 | |
| Shock Absorbers | Telescopic Double Acting at Front and Rear | |
| Wheels and Tyres | ||
| - Tyres(Front) | Single 7.00 x 16 - 12PR (Optional: 205 / 85R16) | |
| (Rear) | Single 7.00 x 16 - 12PR (Optional: 205 / 85R16) | |
| -Rim | 5.5K x 16, 6-studs | |
| -Spare Wheel | Wind-up Carrier | |
| Steering | Hydraulic Power Assistance | |
| Service Brake | Hydraulic Dual Circuits with Antilock Braking System (ABS) | |
| - Front | Disc | |
| - Rear | Drum | |
| Parking Brake | Mechanical Control, Acting on Drum at Transmission Rear | |
| Frame | Ladder type | |
| Fuel Tank(L) | 80 L, Aluminium with Lock | |
| Electrical Equipment | 12 Volt | |
| - Battery | 120AH, 1 pc | |
| - Headlights | Filament Headlamp | |
| Others | Stoplight, License Light, Fog lamp | |
| Turn Signal, Horn | ||
| WEIGHT(kg) | ||
| Chassis with Cab | 1,900 | |
| - on Front Wheels | 1,235 | |
| - on Rear Wheels | 665 | |
| Designed Gross Vehicle Weight | 5,400 | |
| - Designed Front Axle Load | 2,500 | |
| - Designed Rear Axle Load | 3,000 | |
| DIMENSIONS(mm) | ||
| Wheelbase | (WB) | 2,600 |
| Overall Length | (OL) | 4,850 |
| Overall Width | (OW) | 1,830 |
| Overall Height | (OH) | 2,170 |
| Ground Clearance | (GC) | 180 |
| Front Tread | (FT) | 1,510 |
| Rear Tread | (RT) | 1,485 |
| Front Overhang | (FOH) | 1,095 |
| Rear Overhang | (ROH) | 1,125 |
All specification are subject to change without prior notice.
